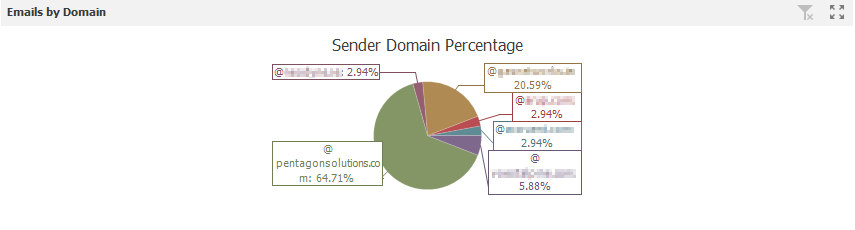

The “Emails by Domain” chart provides a breakdown of sender domains across the organisation. The data displayed can be refined using the “Date Filter (Organisation)” or by selecting specific locations, providers, and other criteria within the charts on the Organisation tabs.

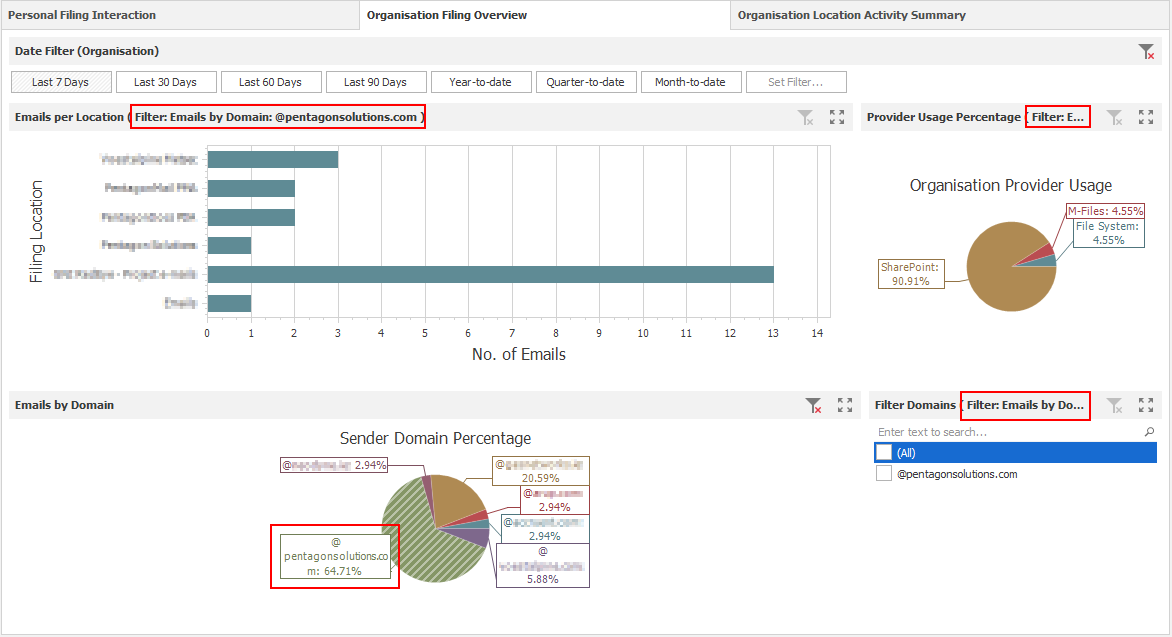

Selecting a slice in this chart will display the corresponding details in the "Emails per Location" and "Provider Usage Percentage" charts. The “Filter Domains” list will also update to show only the relevant items.

Please note that all applicable charts in the "Organisation Location Activity Summary" tab will also be affected by this selection.

Multiple slices can be selected by holding Shift and clicking the slices you want to filter.



Filter Domains:

An additional filter allows you to filter by domain. To use this, search for your desired domain using the search field or simply by scrolling through the list, select the corresponding checkbox(es), and the Organisation charts will update to reflect your selection.



To restore all information after filtering, you can click the “Clear Filter” button on the chart or the main “Clear Filters” button. Please note that the “Clear Filters” button removes all filters applied across all charts on both Organisational tabs, except for the “Date Filter (Organisation)”.
