In this example, we will use the DWG Processor GetDWGInfo method to retrieve the current layout, then use a workflow Precondition event to prevent a state change based on the current layout.


Example

  • Open the M-Files Admin, then expand 'Connections to M-Files Servers\Local Computer\Document Vaults'
  • Expand out the desired vault and select the 'Workflows' node
  • Configure a simple workflow as shown
  • Double-click the state you wish to restrict (e.g. Released)
  • In the 'State Properties' dialog, select the 'Conditions' tab
  • Check the 'Advanced conditions (VBScript)' option in the Preconditions section, then click the 'Edit Code' button
  • In the 'Edit VBScript Code' window, add the following code:


'create ExcitechDOCS DWG Processor object
Set dwgProcessor = GetExtensionObject("ExcitechDOCS.DWGProcessor")


'write to log

dwgProcessor.WriteLog ActivityID, "Example Workflow - Release Precondition"


'ignore errors
On Error Resume Next

'try to get drawing information
Dim dwgInfo : Set dwgInfo = dwgProcessor.GetDWGInfo(Vault, ObjVer, ActivityID)


'reinstate errors
On Error Goto 0


'on failure dwgInfo will be empty
If Not IsEmpty(dwgInfo) Then

dwgProcessor.WriteLog ActivityID, "Current Layout: " + dwgInfo.CurrentLayout


       'raise error if Model layout is current

       If dwgInfo.CurrentLayout = "Model" Then

               dwgProcessor.WriteLog ActivityID, "The drawing must not have Model selected."

Err.Raise MFScriptCancel, "The drawing must not have Model selected."

End If
End If



NOTE: Remember to save the changes to the workflow definition.

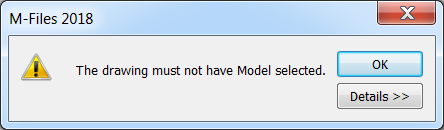

When trying to move a DWG file to the Released workflow state, the transition is prevented if the DWG has the Model layout selected. The M-Files client also displays a dialog box, as shown below:




The resulting log file would contain the following information:


01/01/2019 09:00:00:4144 - Example Workflow - Release Precondition

01/01/2019 09:00:00:4174 - Get Drawing Information

01/01/2019 09:00:00:4264 - DWG File Count: 1

01/01/2019 09:00:00:4274 - Creating RealDWG COM Object. (dllhost.exe)

01/01/2019 09:00:00:6844 - Call GetDrawingInformation COM method.

01/01/2019 09:00:00:7324 - FileVer: ID 16 Version 5

01/01/2019 09:00:00:7374 - Download DWG to temp file: C:\ProgramData\Excitech Docs\DWG Processor\Temp\bbqnxckf.dwg

01/01/2019 09:00:00:7614 - Open DWG file

01/01/2019 09:00:00:8334 - Create DrawingInfo object

01/01/2019 09:00:00:8344 - Populate file format

01/01/2019 09:00:00:8354 - Populate current layout: A1

01/01/2019 09:00:00:8364 - Populate Layout array

01/01/2019 09:00:00:8514 - Populate DWG References

01/01/2019 09:00:00:8574 - Populate Image References

01/01/2019 09:00:00:8594 - Populate PDF References

01/01/2019 09:00:00:8674 - Delete temp files from server

01/01/2019 09:00:01:0395 - Deserialize drawing information from JSON.

01/01/2019 09:00:01:0395 - Releasing COM object.

01/01/2019 09:00:01:0415 - Current Layout: Model

01/01/2019 09:00:01:0425 - The drawing must not have Model selected.
