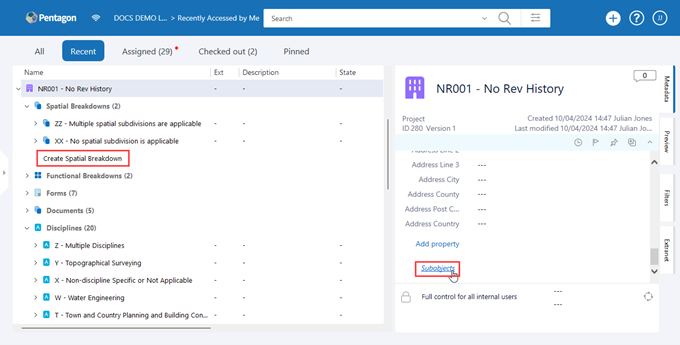

Projects have sub-objects for the Functional Breakdown, Spatial Breakdown, Form and Disciplines which form part of the ISO 19650 file name. These can be created from the expanded Project object tree or from the subobjects link at the bottom of the Project objects metadata pane:

When a new project is created, the default Functional Breakdown, Spatial Breakdown, Form and Disciplines are created automatically. The objects created depend on the Project Definition selected on the new Project metadata card. After the Project is created, the sub objects can be edited to create/delete/rename etc. as required.

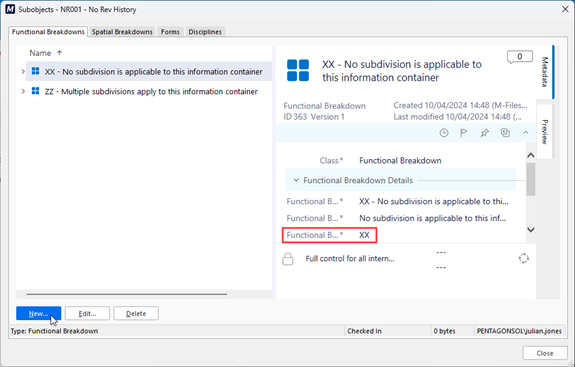

Functional Breakdown Sub-objects:

The Functional Breakdown sub-object may include the standard values of XX and ZZ from ISO 19650 and you can add your own as per the BEP requirements for the Project.

ISO 19650 file naming

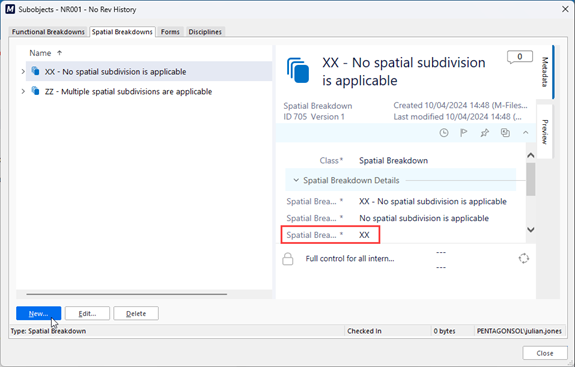

Spatial Breakdown Sub-objects:

Spatial Breakdowns may include the standard ISO 19650 values, and you can also add others as required.

ISO 19650 file naming

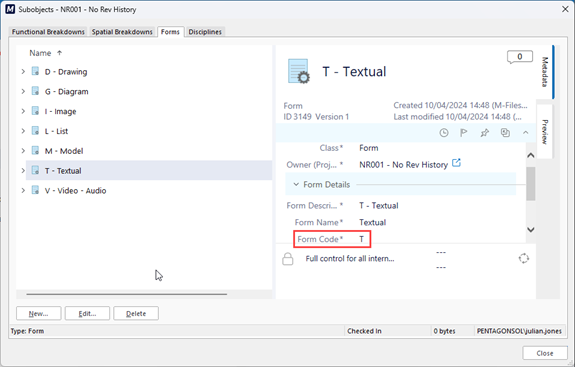

Form Sub-objects:

Forms may include the standard ISO 19650 values, and you can also add your own as required.

ISO 19650 file naming

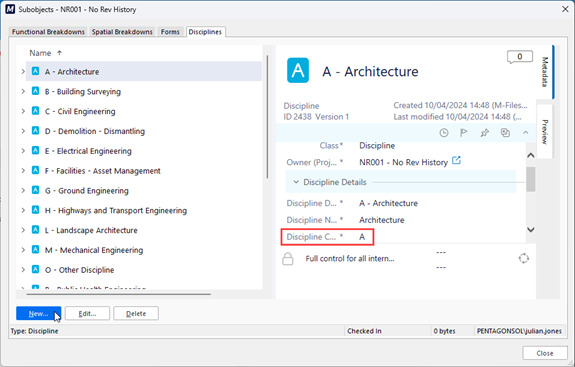

Discipline Sub-objects:

Disciplines may include the standard ISO 19650 values, and you can also add your own as required.

ISO 19650 file naming
