In this example we will use the DWG Processor GetDWGInfo method to retrieve information from a DWG file, then write the DWG file version to the Keywords property. The code below could be added to any number of event handlers, but for this example we will attach the code to the BeforeCheckInChanges event.


NOTE: The 'BeforeCheckInChanges' event is not executed on 'Check in', not immediately.


Example

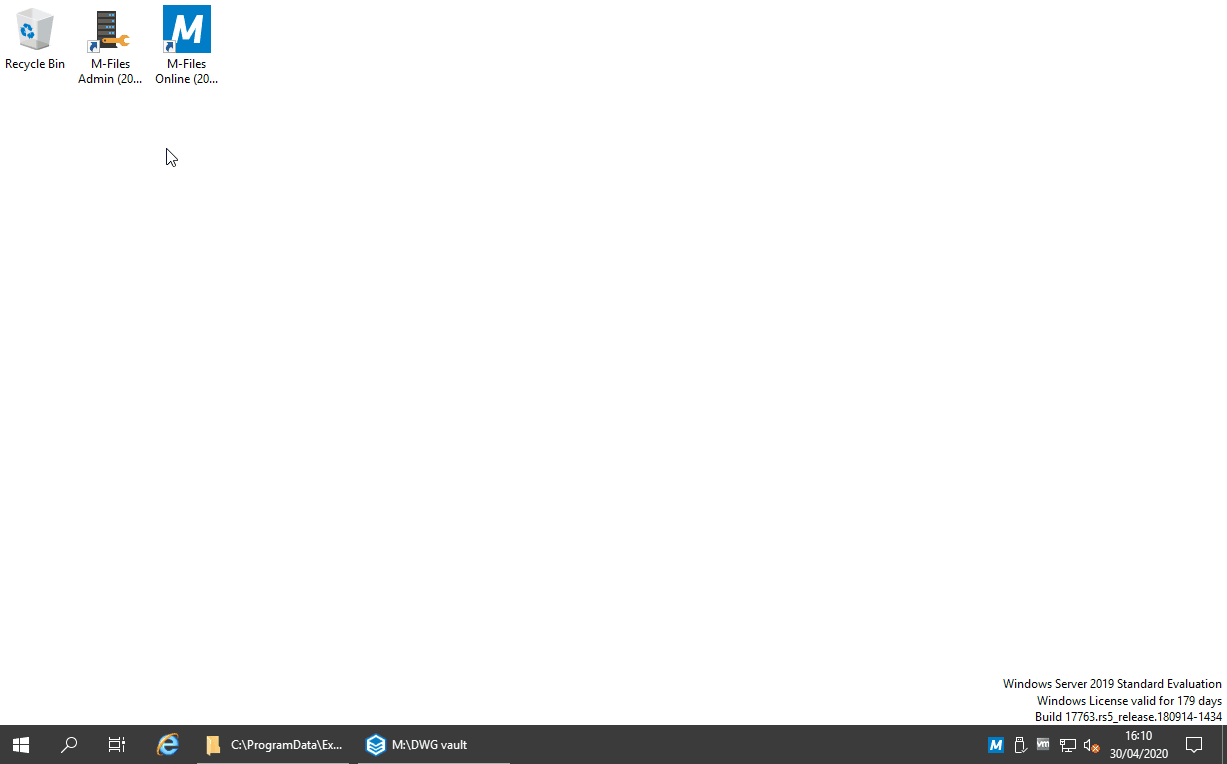

  • Open the M-Files Admin, then expand 'Connections to M-Files Servers\Local Computer\Document Vaults'
  • Right-click on the Vault you want to add an Event Handler to (e.g. 'DWG vault')
  • From the context menu select 'Event Handlers'
  • In the 'Event Handlers' dialog box, select 'Add Event Handler'
  • Select the 'BeforeCheckInChanges' event and enter a name for the new handler
  • Click 'OK'
  • Select the newly created event handler and click 'Edit Code'
  • The VBScript used in this example is:


'create ExcitechDOCS DWG Processor object
Set dwgProcessor = GetExtensionObject("ExcitechDOCS.DWGProcessor")

'ignore errors
On Error Resume Next

'try to get drawing information
Dim dwgInfo : Set dwgInfo = dwgProcessor.GetDWGInfo(Vault, ObjVer, ActivityID)


'reinstate errors
On Error Goto 0

'set default keywords value

keywordsValue = "No DWG File Found"


'on failure dwgInfo will be empty
If Not IsEmpty(dwgInfo) Then

dwgProcessor.WriteLog ActivityID, "DWG File Format Code: " + dwgInfo.DWGFileFormat


       Select Case dwgInfo.DWGFileFormat

               Case "AC1032"

                       keywordsValue = "2018 DWG File"

Case "AC1027"

       keywordsValue = "2013 DWG File"

Case "AC1024"

       keywordsValue = "2010 DWG File"

Case Else

       keywordsValue = "Pre-2010 DWG File"

End Select
End If


'set Keywords Property (26)

dwgProcessor.WriteLog ActivityID, "Set Keywords Property: " + keywordsValue

Set propVal = Vault.ObjectPropertyOperations.GetProperty(ObjVer, 26)

propVal.Value.SetValue MFDatatypeText, keywordsValue

Vault.ObjectPropertyOperations.SetProperty ObjVer, propVal



  • When a DWG document is edited / checked in (not immediately), the Keywords property is updated:



The resulting log file would contain the following information:


30/04/2020 16:00:33:4012 - Get Drawing Information

30/04/2020 16:00:33:4327 - DWG File Count: 1

30/04/2020 16:00:33:4327 - Creating RealDWG COM Object. (dllhost.exe)

30/04/2020 16:00:33:5884 - Call GetDrawingInformation COM method.

30/04/2020 16:00:34:4485 - Processing Object: ID 2 Version 6

30/04/2020 16:00:34:4794 - FileVer: ID 2 Version 1

30/04/2020 16:00:34:4794 - Download DWG to temp file: C:\ProgramData\Excitech Docs\DWG Processor\Temp\c3fcdc62-3b70-4f17-9d2d-851ff1789aa6\Ground Floor Layout.dwg

30/04/2020 16:00:34:5104 - Open DWG file

30/04/2020 16:00:34:9642 - Create DrawingInfo object

30/04/2020 16:00:34:9642 - Populate file format

30/04/2020 16:00:34:9791 - Populate current layout: A1

30/04/2020 16:00:34:9791 - Populate Layout array

30/04/2020 16:00:34:9950 - Populate DWG References

30/04/2020 16:00:34:9950 - Populate Image References

30/04/2020 16:00:34:9950 - Populate PDF References

30/04/2020 16:00:35:1666 - Delete temp folder from server: C:\ProgramData\Excitech Docs\DWG Processor\Temp\c3fcdc62-3b70-4f17-9d2d-851ff1789aa6

30/04/2020 16:00:35:1666 - Deserialize drawing information from JSON.

30/04/2020 16:00:35:1825 - Releasing COM object.

30/04/2020 16:00:35:2604 - DWG File Format Code: AC1027

30/04/2020 16:00:35:2604 - Set Keywords Property: 2013 DWG File
